low power, lipo powered temperature sensor¶

Why:

• first battery powered device using our stick
• .. and our new buck-boost converter board !
• playing around with lipo's and solar modules
• it's just pretty cool to see the graphs :D

Parts:

• CC2652 stick
• RP605 buck-boost converter
• MCP9808 temperature sensor
• LiPo battery
• Solar panel (max. 5V)
• LiPo charging board
• some glue.. ;D

this sensor is sending every minute the current temperature, using the OpenThread stack. informations are forwarded via MQTT, then blown into the an influxdb and visualized via a grafana dashboard.

even without the solar panel, the sensor should be powered with this huge 1100mH LiPo for multiple years.. and with.. yeah, it could life "forever"? ;D

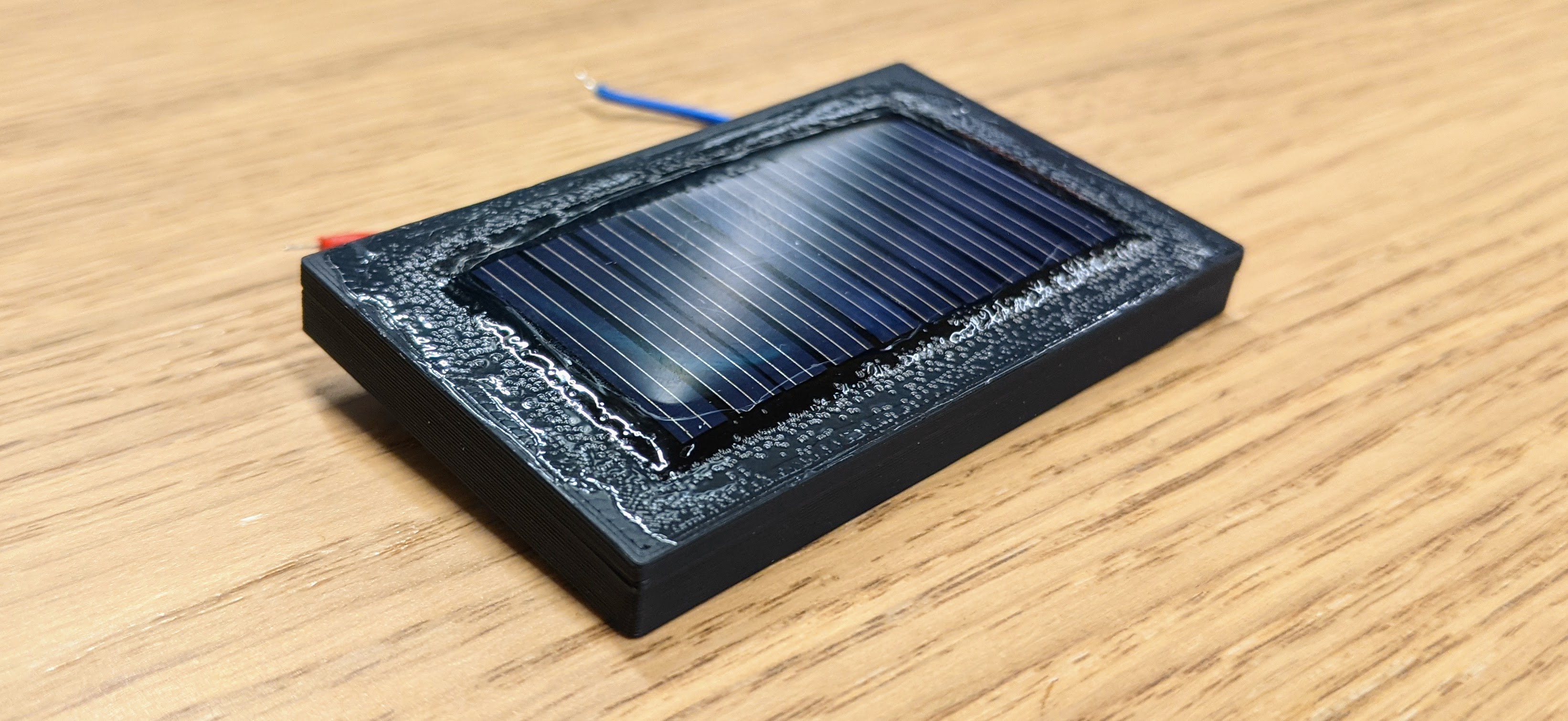

printed a enclosure for this, not really shiny and nice, but works for the start.. =)

as mentioned above, just used some glue to make it "water proof" .. or maybe better "rain proof" ! ^^

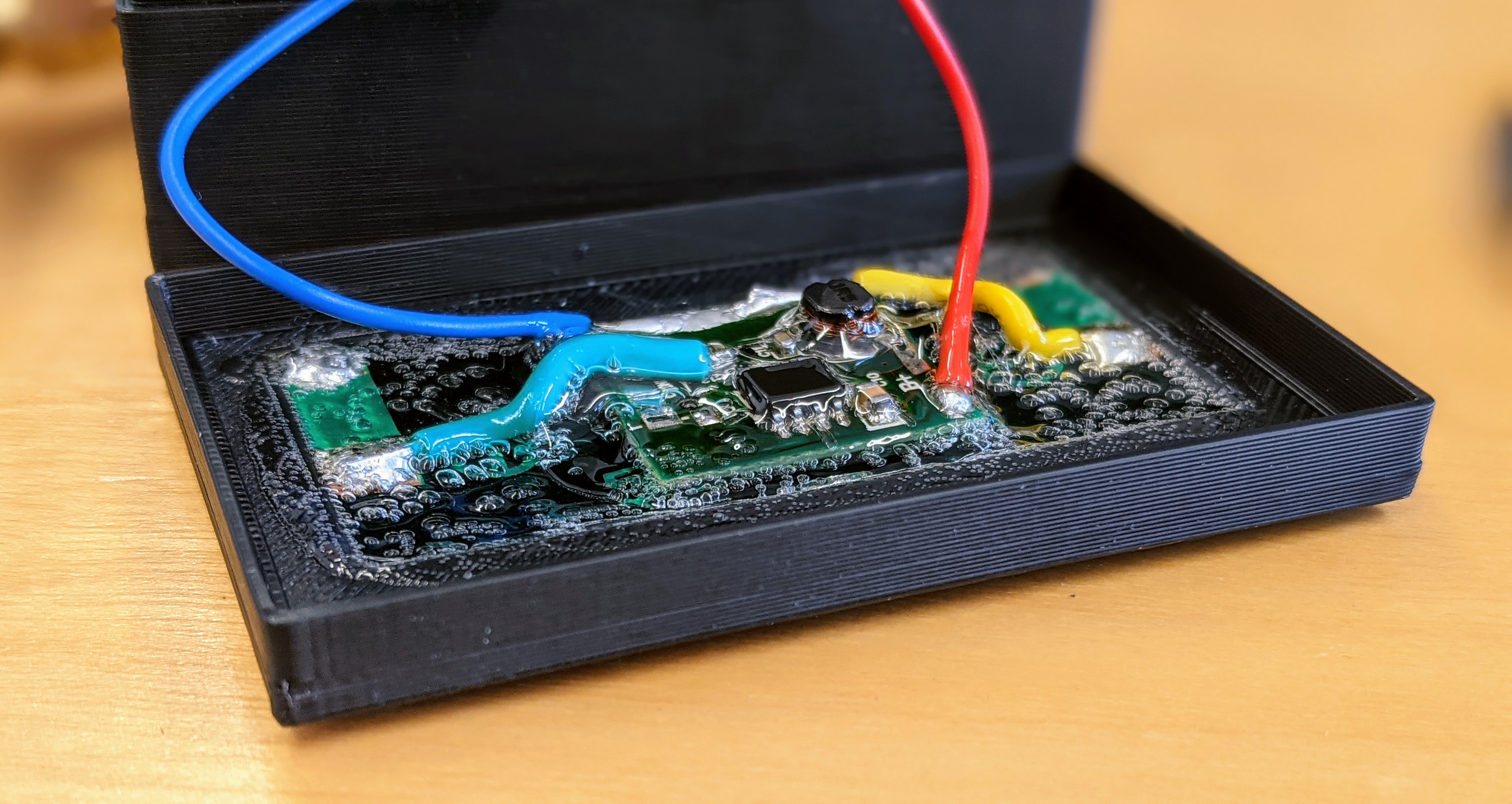

after some tests we just glued the charging board into the top:

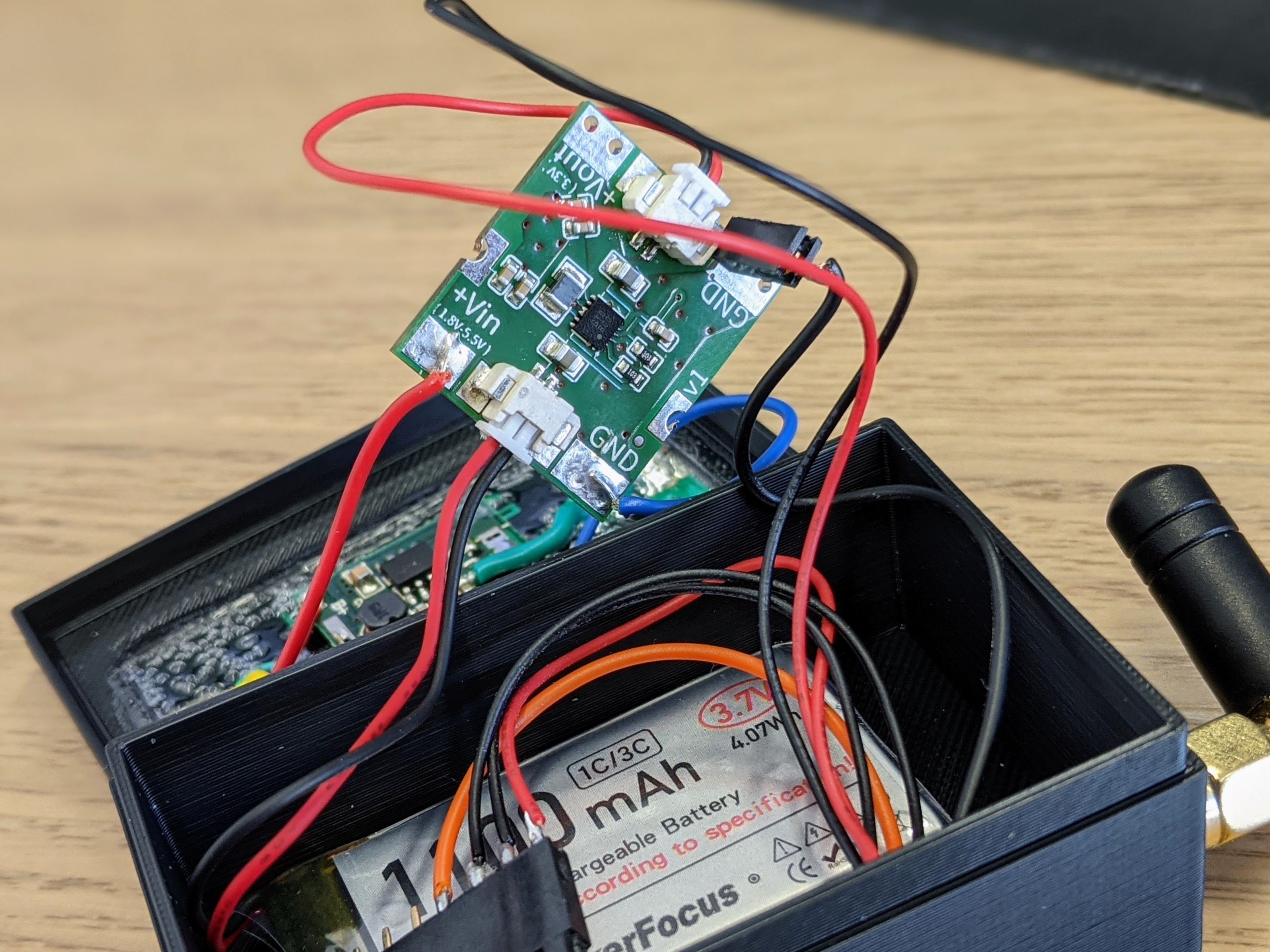

here is our new cool RP605 buck-boost converter in action:

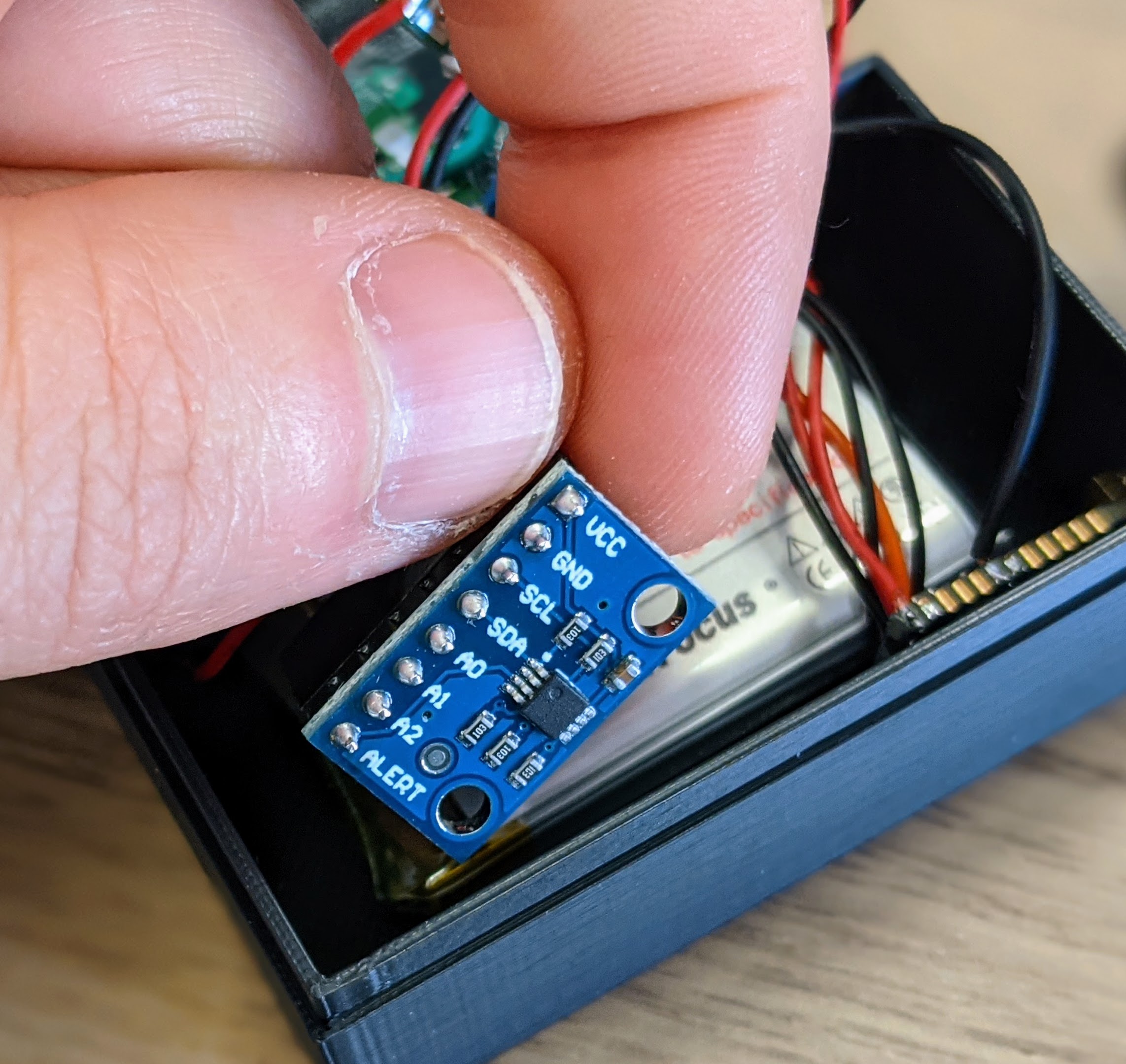

the MCP9808 temperature sensor:

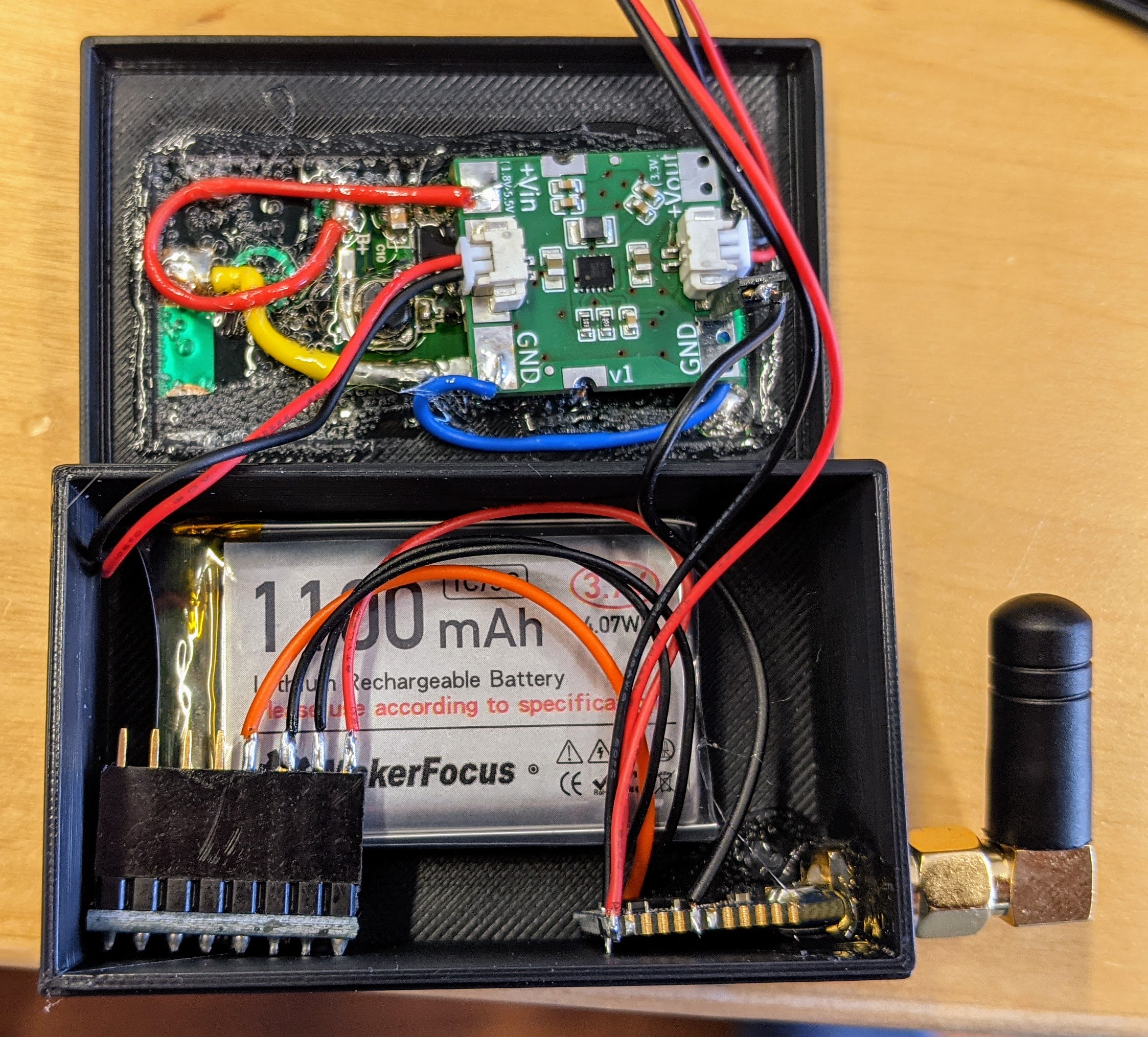

literally.. all glued together! =D

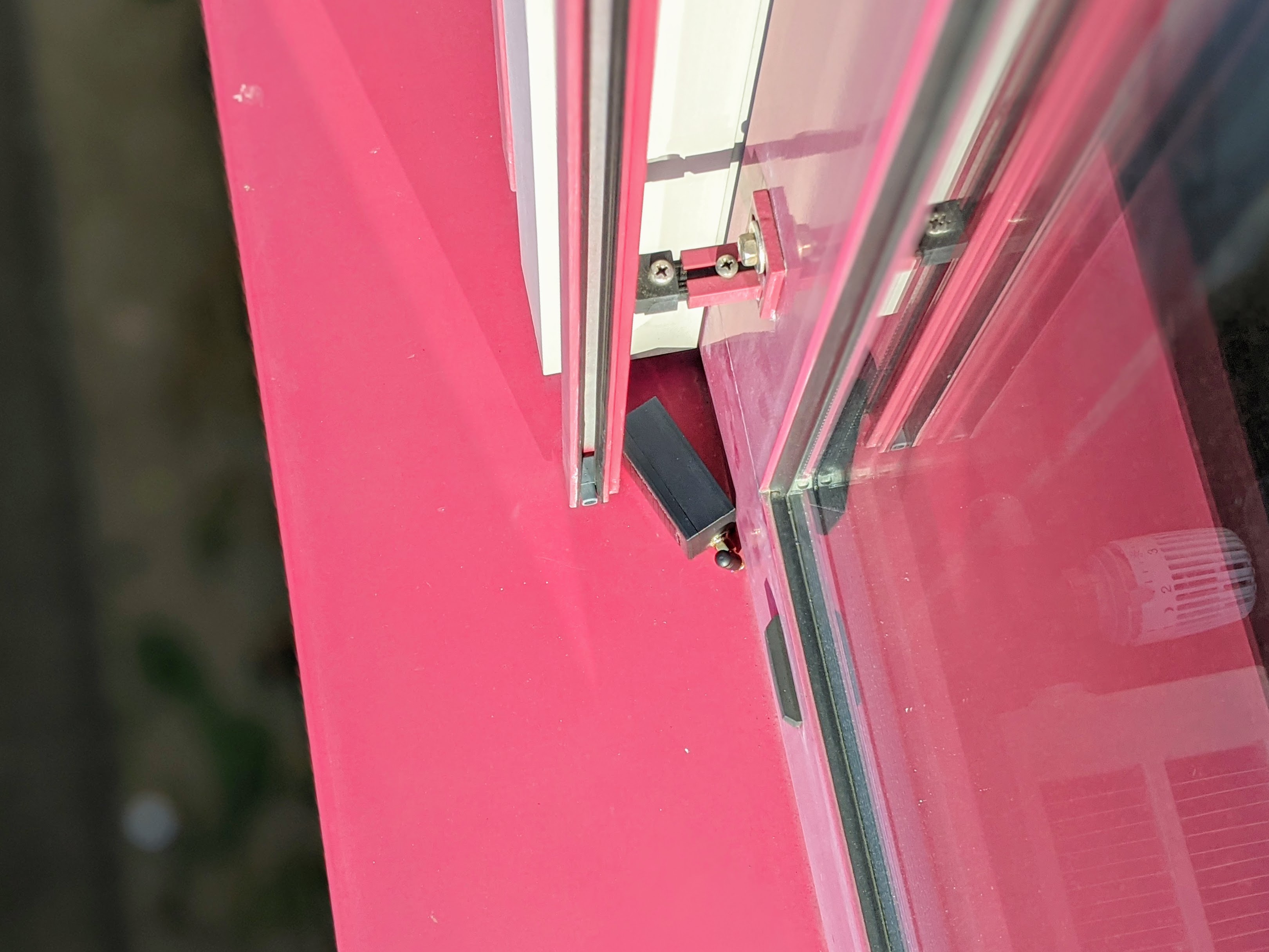

and will now just sit here in front of our office window.. ;)

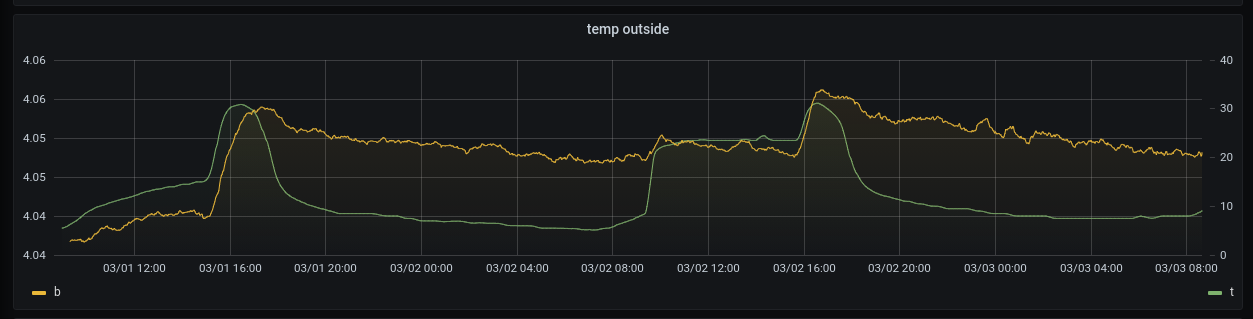

.. aaaand finally the graphs! thanks to the beauty and easyness of grafana..

could spend the whole day starring at those graphs.. =D

And as you can see, the battery voltage (yellow), goes UP.. So it charges more than consuming.. pretty cool though!

Downside: temperature gets up, once the sun kisses the sensor. maybe not a black enclosure could help..
